Aluminum Antique Tiles has the characteristics of light weight, large single area and easy construction. It is mainly used for ancient building walls, gatehouses and retro interior decoration design. Antique metal tile is suitable for new slope roof and old building flat slope roof of concrete structure, steel structure, wood structure, brick and wood mixed structure, etc. Suitable slope 15-90 degrees, suitable temperature -50℃-70℃.

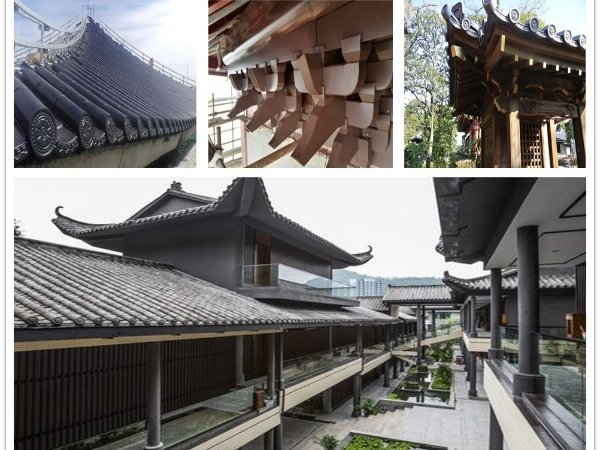

Applications
- Villa
- Scenic areas
- Hotels
- Streets
- Museums
- Houseboats
- Parks and other roof renovation projects.
Feature of Aluminum Antique Tiles
- Unique appearance. It integrates the beauty and elegance of traditional glazed tiles with modern color steel technology.
- Light weight and high strength. The two reinforcing bars between the aluminum antique tiles adjacent wave peaks make the ordinary color steel tile unmatched strength.
- Corrosion resistance. The antique color steel glazed tile adopts 55% aluminiumzinc as the substrate.
- With its own unique anti-corrosion and anti-rust coating treatment technology, the coating is 20-35μm thicker than ordinary steel plates.
- Waterproof and fireproof. The length can be extended freely, the slope is connected without gap, the overlap is tightly combined, and the complete sealing fixed components are equipped with excellent water resistance.
- Convenient installation. Can provide a complete set of roof system solutions, can be horizontal and longitudinal lap.
- Environmental protection and energy saving. Does not contain organic volatile, can be recycled, save land resources, green environmental protection and energy saving.
Advantages
- 100% fireproof, easy to pass environmental certification and fire protection regulations;
- Acid resistance, high alkaline energy, can withstand harsh environment wind and sun;
- Good windproof effect, not threatened and destroyed by insects, birds and fungi;
- Strong adhesion, high toughness, strong impact resistance, smooth coating, strong pollution resistance, easy to clean;
- Has excellent weather resistance and UV resistance linearity;
- Beautiful and elegant color, light and rich color, can be matched into a variety of thatch colors, the longer the use of color more realistic;
- Environmental protection, recyclable processing；
- The roof adopts screw welding installation, unlike the traditional tile long time long grass corrosion; Freezing cracks in winter, and exposure to sunlight in summer are easy to fall off, especially posing a safety threat to pedestrians.
Aluminum Antique Tile Specification
| Item | Aluminum antique tiles | Canopy & Slab tile |
| Alloy | 3003/3004/5052 | |
| Temper | O/H24 | |
| Thickness | 1.0/ 1.2/ 1.5 mm | |
| Feed width | 1000 mm | |
| Discharge width (common) | 900/ 430/ 840 mm | 120/150 mm (Exposed part) |
Material installation
Aluminum Antique Tiles area is large, light weight, super self-cleaning function, easy to install and widely used. With the use of nails that make the shingles line up in a parallel manner, which has allowed them to overlap for rainwater to run off, the antique roofing system can last for 50 years, and antique shingles are gradually being recognized as the best roofing material among the existing shingles.

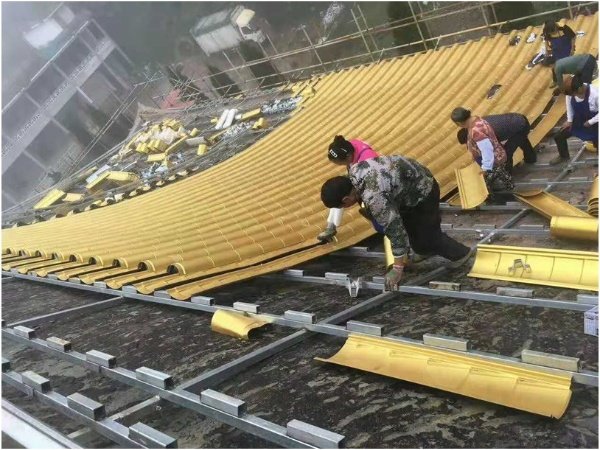

Aluminum Antique tile installation sequence
- Lay the transverse keel
- Lay the secondary keel
- Lay the ridge keel
- Install dripping tiles
- Install connected tiles
- Install the roof ridge
- Glue: seal the roof ridge properly hook and oblique when the hook joint
Factory of Aluminum Antique Tile
Henan Gusto trading company mainly produces and develops aluminum antique tiles, metal brackets, antique metal guardrail and other products. The use of modern advanced design concepts and technologies, with special alloy aluminum, copper as the main raw materials, through sheet metal, stamping, molding, surface treatment, multi-layer fluorocarbon spray and other processes refined.
The metal tile developed has a new type, compound, environmental protection, high-tech international advanced level.
On the basis of maintaining the style of ancient building components, all kinds of antique building components highlight the advantages of processing accuracy, speed and quality, and are the most ideal materials for ancient building maintenance and antique building decoration.
